solar monitoring

Solar monitoring and control system keeps track of your daily Solar Energy production levels and gives you preventative warnings on abnormal conditions.

info

Environment Monitor

Customize your applications from agriculture soil monitoring, pollution control to indoor air quality tracking. User configurable WEB real-time screens.

info

Energy Management

Monitor your energy for small retail shops by direct CT monitoring to buildings integrated with WAGES. EM100 logger can cover all applications with low cost.

info

Navigation

Main FEatures

14 String Monitoring
5 Digital and Analog I/O
96 Built-In Hardware Alarms for faults

Entry level flexible advanced string monitoring unit operates from -25°C to 70°C temperatures.

Digital and analog I/O for sensors measurement and facility status controls

Standard Modbus Communications via RS485

For More Documentation such as::

Specification Document

Application Document

Please contact sales@enerwise.asia for further details.

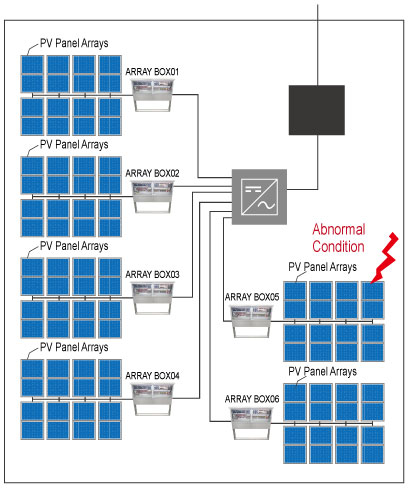

Industry's leading entry string monitoring and control device for smart array boxes and solar power stations

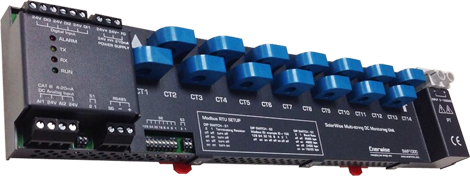

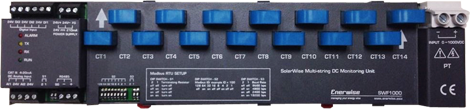

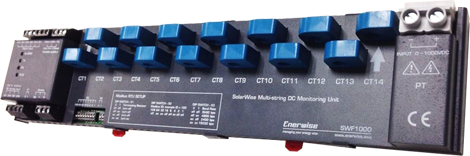

SolarWise SWF series is a powerful PV-string meter delivering you high accuracy and superb stability in harsh outdoor conditions. This SWF1000 entry unit has 14 on-board CT’s with voltage sensor all in one. Error signals from SPD or sensors can be monitored by the built-in I/O functions

Monitors and detects fuse blown issues

Adding SWF1000 string monitoring unit turns the typical combiner box into an intelligent unit with measurement. String performances are measured to give users insight to which string has a problem due to poor power output. The hall effect sensor measures with 2.0% accuracy giving a high accuracy on report calculations. SWF1000 also gathers signals from SPD, temperature sensors or switch disconnectors to give alarms to the SolarWise software.
