SWF 870 Features

Overall Functionality

From BIPV to MW size solar farm
AC and DC power analysis
Data storage up to 5 years



Communications

4 port RS485 Modbus
Ethernet Port
200 devices or more



Languages

English, Japanese, Chinese and German



Alarms and Events

Alarm displays to indicate critical errors found in plant
Sequence of Events SOE illustrating all the errors or warning logged into the system with time
Performance problems identified immediately with color coding alarms

SWF 870 Solar Energy Management System

SolarWise WEB is the most comprehensive analysis system for all parts of the solar farm. The system integrates with array boxes, SUB array boxes, inverters, sensors and WEB camera all in one unit. This system supports open inverter protocols that read inverter data directly from communication ports and store and process the data into the internal database. It has the ability to connect up to 200 array boxes for in-depth string analysis study.

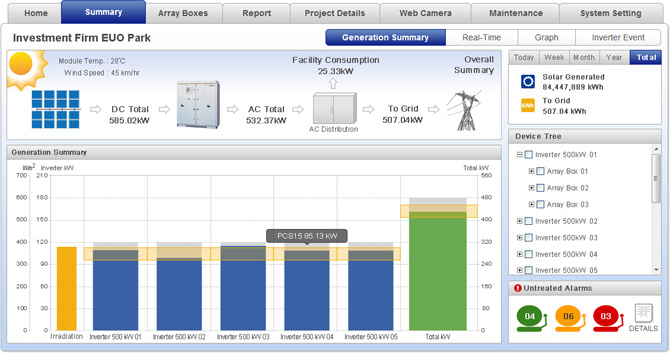

arraybox arraybox Real-time Summary Information

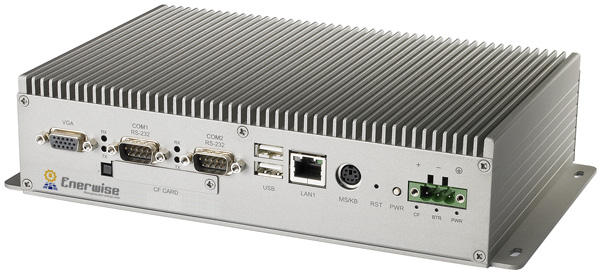

The industrial PC solution saves the hassle of installing software into operator computers and debugging installation errors. All settings are done via the WEB pages.

String analysis function studies the string performance at 2 levels. Cumulative string performance and instant string performance over time. Analysis can be saved and generated into PDF, EXCEL reports for Emailing to other operators.

SolarWise WEB has 4 languages available, English, Chinese, Japanese and German.

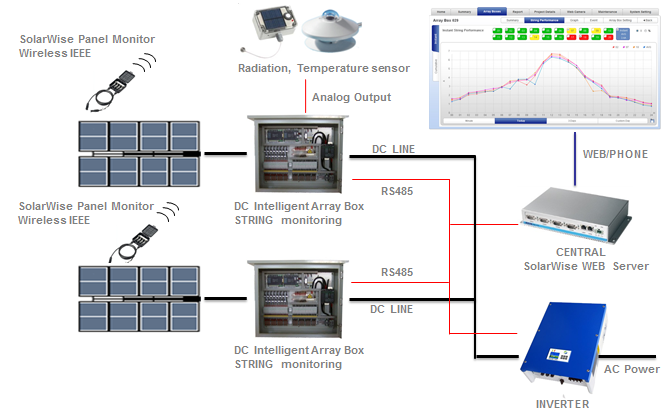

arraybox A typical BIPV SolarWise WEB architecture

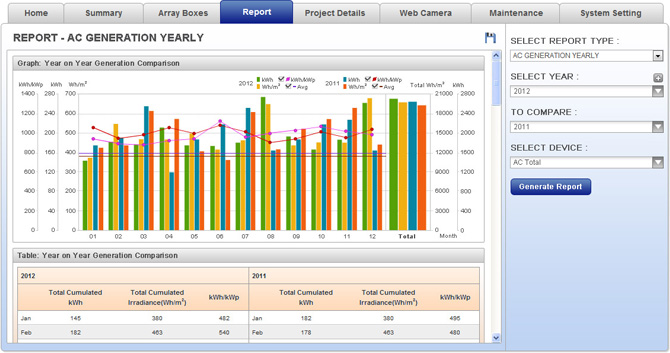

arraybox Powerful Report Builder
