Intelligent Sub Array Box Features

SUB String Monitoring up to 300A with SWF820 Monitoring System Isolation control function via SWF820 Monitoring System for breaker trip function on SUB Strings



Sub Array box of Stand Type or Hanged Type Stainless Steel, SGCC, Steel Materials



MCCB with Protection Breakers to protect each input string per Sub Array Box



SPD surge protection up to 1000V and leakage current protection



Integrated Sub Array Box internal temperature sensors, internal heater, irradiation sensor, wind sensor



For More Documentation such as:

Specification Document

Application Document


Please contact sales@enerwise.asia for further details.

SolarWise Intelligent Sub Array Box

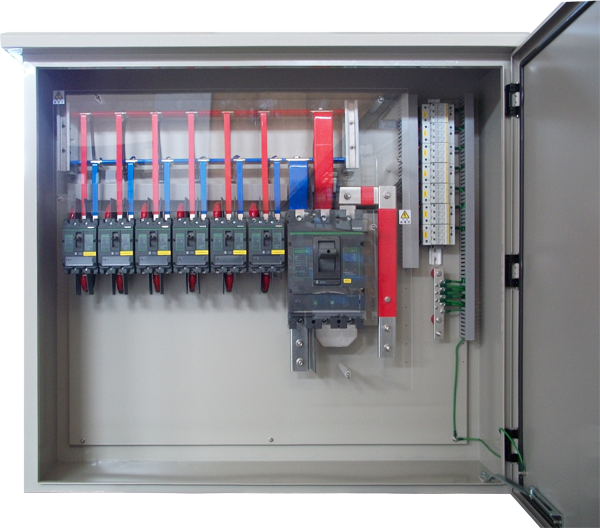

SolarWise SUB Array Box/Combiners integrate multi-array boxes into a Centralized DC power system for connection to the centralized inverters up to 500kW

arraybox

SolarWise SUB Array Boxes work at the upper level of combining power from array boxes into even bigger power before feeding off to the inverter.

SUB Array Boxes or Combiner Boxes are electrical enclosures of simple functions that combine large currents from array boxes into much larger currents up to 1200A before going into centralized inverters.

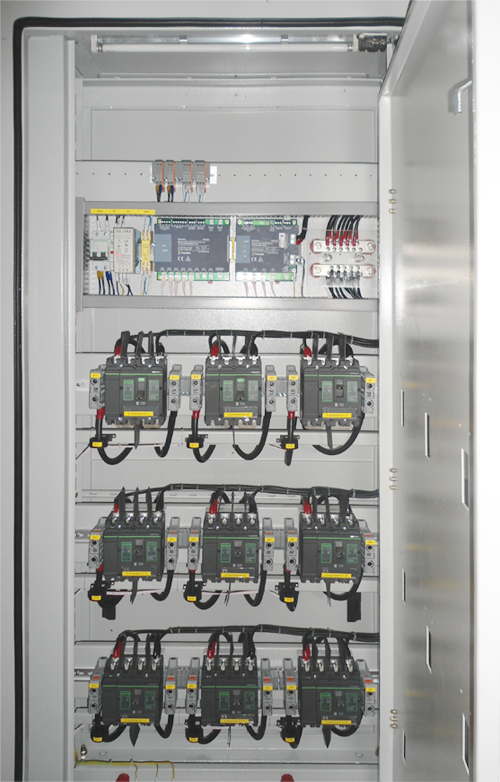

Enerwise offers SUB Array Boxes that combines 4 to 16 strings from Array Boxes. Each SUB Array Box input can range from 50A to 250A in size.
We offer complete Standing Types of higher rating or Hanged Types that are of smaller rating.

Solar SUB String monitoring SWF820 can be optionally installed to measure currents to detect abnormal current levels, leakage current warnings and detect power of the string before going into the inverter.

Controls by SWF820 can be done by tripping each MCCB via a tripping function issued by the SCADA or via SolarWise WEB controls. Isolation of a string inside a SUB Array Box provides safety in case of an error in an array occurs.
